某型雷達天線舉升機構設計及精度分析

打開文本圖片集

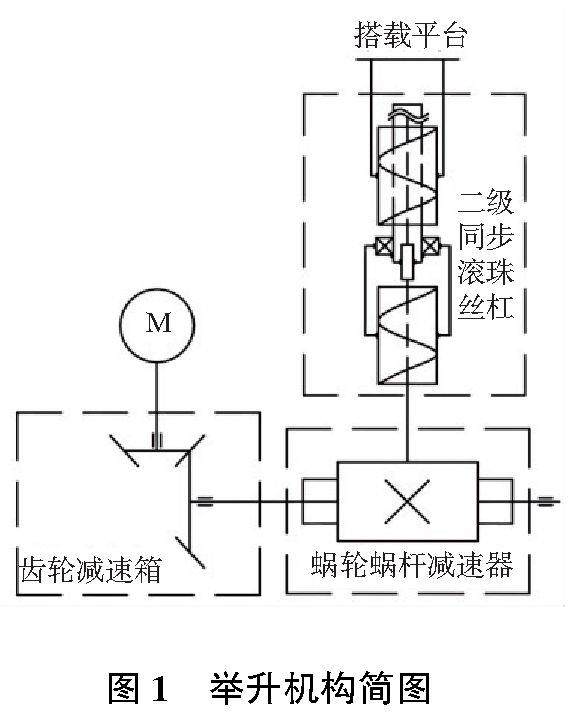

摘 要：設計一種新型車載機動雷達天線舉升機構，采用缸筒一體集成設計，有效實現機構的小型化及輕量化。驅動及傳動采用伺服電機、減速機構及機械式二級同步滾珠絲杠的組合形式。進一步對舉升機構的載荷及精度進行分析。根據NX仿真及試驗，驗證了所提出舉升機構的高精度、高剛度及高強度技術特征。

關鍵詞：機動雷達天線；舉升機構；缸筒一體；載荷分析；精度分析

中圖分類號：TJ812+.8  文獻標志碼：B  文章編號：1671-5276（2025）01-0076-05

Design and Accuracy Analysis of Lifting Mechanism for Radar Antenna

Abstract：This paper proposes a new type of antenna lifting mechanism for mobile radar on vehicle， which adopts a cylinder barrel integrated design and can effectively achieve miniaturization and lightweight of the mechanism. And its drive and transmission employs the combination form of servo motor， reduction mechanism， and mechanical two-stage synchronous ball screw. The load and accuracy of the lifting mechanism is further analized. The NX simulation and experiments verify the high accuracy， high stiffness and high strength of the proposed lifting mechanism.

Keywords：mobile radar antenna; lifting mechanism; cylinder barrel integrate; load analysis; accuracy analysis

0 引言

車載機動雷達在工作狀態下對天線陣面的精度有嚴格要求，高精度是雷達生存、持續戰斗力的關鍵［1-2］。（剩余4183字）
