一種元件翹起不良檢測方案

打開文本圖片集

中圖分類號：U463.6 文獻標識碼：B 文章編號：1003-8639（2025）08-0134-03

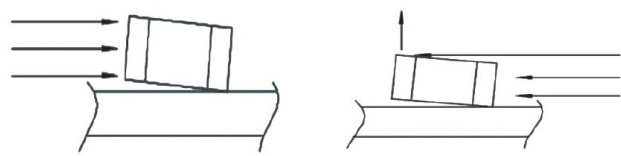

【Abstract】Aiming at the problem that the poor lifting of components in the miniaturization production of automotive circuitcomponents isdiiculttobedetectedbytraditional2Dcameras，thispaperproposesamulti-directionalsidelight sourcevisual inspectionscheme.Byarranging strip lightsources toilluminateandcollect images insequence，the diferences in the luminancecharacteristic values of thecomponentsurfaces arecompared.The brightnessdiferenceof normal components isnearlyO，whilethebrightness diferenceofliftedcomponents issignificantduetolightocclusion andreflectiondiferences.Intheexperiment，thebrightnessdiferencesbetweenthenormaland liftedcomponentswere3 and-201 respectively，which could verify the effectiveness of the scheme.

【Key Words】 vehicle regulator； industrial vision；vision light source

0 引言

發電機調節器是汽車重要的功能部件，其主要功能是調節發電機的發電電壓，而平穩的電壓是汽車內部各種電器穩定運行的前提。（剩余3034字）
