達麗莎·貝靈通”輪修理工程中中間軸換新工藝

打開文本圖片集

中圖分類號：U672.2 文獻標志碼：A

Renewal ProcessofIntermediate ShaftinMV "Teresa Bellington" Repair Project

LI Huiqiang （Cosco ShippingHeavyIndustry（Guangdong） Co.，Ltd.，Guangzhou51o730，China）

Abstract： Intermediate shaft renewal in ship repair involves multiple technologies， with flange alignment of new shafts and hydraulic coupling restoration being particularly complex.Taking the intermediate shaft renewal of MV "Teresa Bellington" as a case study，this paper addresss solutions for fange alignment and hydraulic coupling repair. The proposed methods ensure proper operation of the renewed intermediate shaft and restore the scored hydraulic coupling to meet quality standards for repeated disassembly/reassembly.

Key words： intermediate shaft renewal; flange alignment; counterbore machining; intermediate bearing commissioning

1 引言

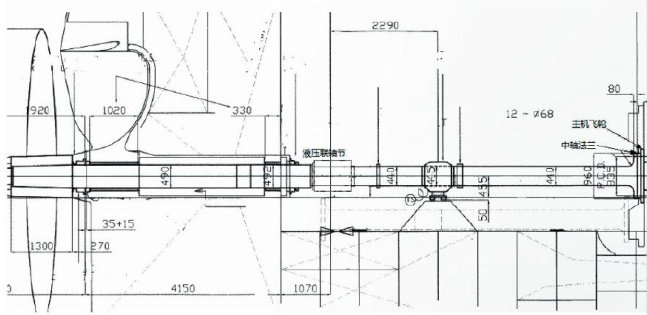

“達麗莎·貝靈通”是一條希臘散貨船，推進軸系包含螺旋槳軸、中間軸和螺旋槳，其中螺旋槳為定距槳，螺旋槳軸與中間軸采用液壓聯軸節聯接，中間軸法蘭與主機飛輪端法蘭采用液壓螺栓聯接，但中間軸法蘭與主機飛輪端法蘭外徑不一樣。（剩余4647字）
