組合位移模式下剛性擋土墻非極限土壓力試驗研究

打開文本圖片集

中圖分類號：TU432 文獻標志碼：A 文章編號：1003-5168（2025）12-0056-07

DOI：10.19968/j.cnki.hnkj.1003-5168.2025.12.011

Experimental Study on Non-Ultimate Soil Pressure of Rigid Retaining WallUnderCombined DisplacementMode

FENGXiaohui' XIA Qiong2 LUO Yihuan3

（1.Civil Engineering School，Lanzhou Jiaotong University，Lanzhou73O07o，China;2.Lanzhou Jiaotong UniversityCivilEngineeringNationalExperimental Teaching Demonstration Center，Lanzhou 73OO7O，China; 3.Yunnan Construction Infrastructure Investment Co.，Ltd.，Kunming 65o5oo， China）

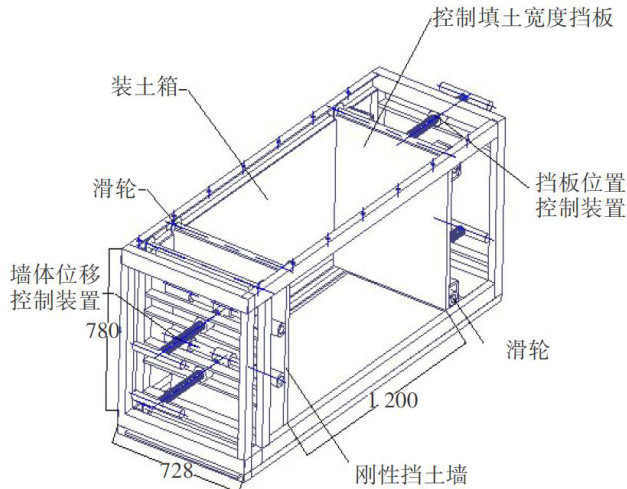

Abstract： [Purposes] To investigate the influence of different displacement modes of retaining walls on thedistribution patern of non-ultimate active soil pressure on the wall.[Methods]A self-made model box was used to conduct experimental studies on non-ultimate active soil pressure under three displacement modes of retaining walls： translation （T mode），rotation around the botom of the wall with translation （RBT mode），and rotation around the top of the wall with translation （RTTmode）.[Findings] The experimental results indicate that non-ultimate active soil pressure is significantly influenced by both the displacement mode and magnitude of the retaining wall，and the non-ultimate active soil pressure Varies significantly with displacement at different zones; in Tmode，the soil pressure changes most significantly within the displacement range of 0＼～ .0.65sc and 0～0.5H ; in RBT mode， the soil pressure changes most significantly within the range of displacement 0～0.55sc and 0.2～0.8H ；In RTT mode， the soil pressure changes most significantly within the range of displacement 0～0.71sc and 0.45～1H ; The RBT mode has thelargest displacement at 0.56%H ，followedbytheRTT modeat 0.44%H ，andtheTmodehasthe smallest displacement at 0.31%H. [Conclusions] Compare and analyze the measured values of soil pressure on retaining wals under three diferent displacement modes with the theoretical calculated values， and identify zones where the main erors may occur when using theoretical formulas for calculation in similar projects.

Keywords： active soil pressure; rigid retaining wall; displacement mode;non limit state; ultimate displacement

0 引言

擋土墻后填土的土壓力變化規律一直是土工支擋結構研究中的重點和難點。（剩余8320字）
