非合作無人機地面站及飛手快速搜尋檢測技術

打開文本圖片集

關鍵詞：無人機反制；信號測向；時間調制陣列天線；透視投影；快速檢測中圖分類號：TP391.4文獻標志碼：ADOI：10.7652/xjtuxb202507004 文章編號：0253-987X（2025）07-0036-10

Rapid Search and Detection Technology for Non-Cooperative Unmanned Aerial Vehicle Ground Stations and Operators

JIN Xiaolong，HOU Bo，F(xiàn)AN Zhiliang，YIN Zhongjie （School of Combat Supporting，Rocket Force University of Engineering，Xi’an 71o025，China）

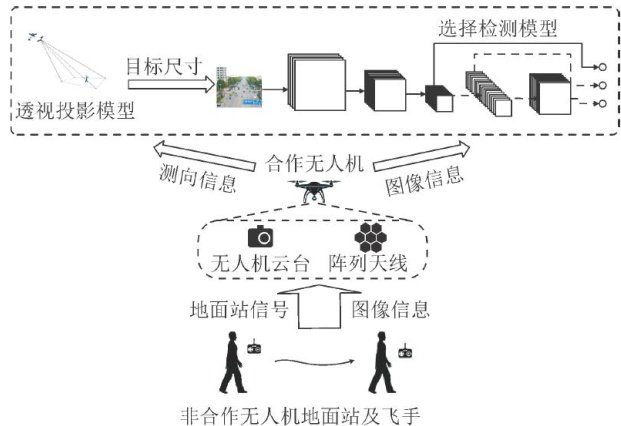

Abstract： To address the limitations of existing anti unmanned aerial vehicle （anti-UAV） technologies，which only focus on interfering with and intercepting UAVs themselves，resulting in a“symptomatic rather than fundamental” solution，a rapid search and detection technology aimed at non-cooperative UAV ground stations and operators is proposed. First，the direction of the non-cooperative UAV ground station is determined using a time-modulated array antenna signal directionfinding method. Then，based on this directional information，perspective projection is employed to calculate the projected size of the ground station operator in the UAV-mounted visual device. Finally，a lightweight target detection network is reconstructed，and a network selection mechanism asisted by target projection size information is implemented to achieve rapid operator detection. Simulation and experimental results demonstrate that the proposed technology enables fast search and detection of ground stations and operators. Specifically，the average single direction-finding time on the UAV platform is 9.67ms ，with an average direction-finding error of 1. 08° .The image detection frame rate for operator targets is improved by an average of 52.98% ，while the reconstructed target detection network reduces the parameter count by 59.6% and floating-point operations per second by 37.7% on average. The proposed technology provides a novel approach and methodology for anti-UAV measures.

Keywords： anti unmanned aerial vehicle； signal direction finding；time-modulated array antenna; perspectiveprojection；rapid detection

近年來，隨著以商用無人機為代表的“低慢小”飛行器逐步普及[1-4]，由此帶來的安全威脅也急劇增加。（剩余15578字）
