連續多穩態齒輪元胞機械超結構及其力學性能

打開文本圖片集

關鍵詞：機械超結構；齒輪元胞；力學性能；連續可調；減振結構

中圖分類號：TB34

DOI：10.3969/j.issn.1004-132X.2025.04.023 開放科學（資源服務）標識碼（OSID）：

Continuous Multi-stable Gear Cell Mechanical Metastructures and Mechanics Properties

MO Shuai1，2，3 * HUANG Xuan1，2 HUANG Zurui1，2 ZHANG Wei1 1.State Key Laboratory of Featured Metal Materials and Life-cycle Safety for Composite Structures，Nanning，530004 2.School of Mechanical Engineering，Guangxi University，Nanning，530004 3.State Key Lab of Digital Manufacturing Equipment and Technology，Huazhong University of Science and Technology，Wuhan，430074

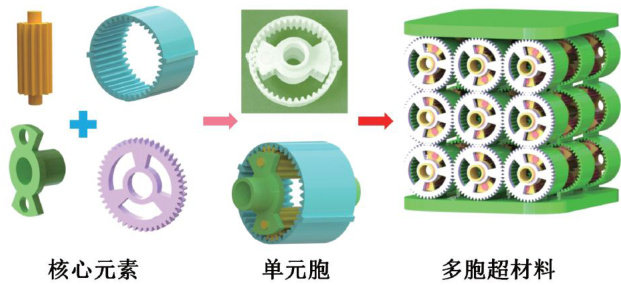

Abstract： In order to expand the forms of mechanical metastructures and optimize the dynamic adjustment ability of mechanical metastructures，a micro gear unit structure was designed，which was periodicall arranged in a two-dimensional plane to form a metastructure. The structural design principle and stability of the metastructure were analyzed.It is demonstrated that continuous and stable tunable of mechanics properties may be achieved by the designed metastructure. The extensive mechanics properties of this metastructure，including statics and dynamics，were analyzed through finite element simulation method.The results indicate that the elastic modulus of the externall meshed gear cells has a tuning range exceeding 1O times，while that of the internally meshed planetary gear cells exceeds 200 times. A considerable tunable range is also observed in the shear modulus.Additionally，the continuous change of the natural frequency and frequency amplitude curve may be realized by this gear unit-based metastructure，providing a new idea for the design of materials aimed at vibration reduction. Finally，a variety of metastructure vibration reduction devices were designed based on this micro gear unit， demonstrating the unique advantages and broad application prospects in vibration reduction and dynamic control.

Key words： mechanical metastructure; gear cell; mechanics property; continuously tunable； vibration-reduction structure

0 引言

超材料/超結構是具有非常規性能的人工結構[1-3]，機械超結構的發展可以追溯到早期的周期梁、板、蜂窩等結構，通過合理配置與優化這些元素，可以實現負泊松比、低密度、高強度等優異力學性能，如GAO等[4]、CHENG等[5]通過對負泊松比結構進行優化，得到具有增強機械性能的超材料。（剩余9520字）
