擠壓-切削制備可控厚度的雙層梯度結構帶材的新工藝及機理

打開文本圖片集

關鍵詞：擠壓-切削；可控厚度；雙層梯度結構；梯度超細晶帶材；機械性能中圖分類號：TG376DOI：10.3969/j.issn.1004-132X.2025.04.010 開放科學（資源服務）標識碼（OSID）：

New Process and Mechanism of Squeeze-machining for Preparing Bilateral Gradient Structure Sheets with Controllable Thickness

PANG Xueqin1，2 ZHAO Junyu1 DENG Wenjun2 ZENG Yuning2 ZHONG Peixuan2* 1.Faculty of Electrical and Mechanical Engineering，Kunming University of Science and Technology， Kunming，650500 2.School of Mechanical and Automotive Engineering，South China University of Technology， Guangzhou，510641

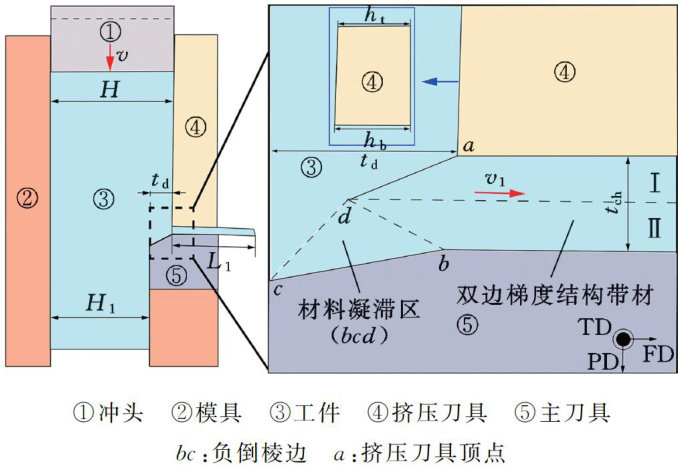

Abstract ： To address the issues of high strength but low ductility in ultrafine-grained materials，a unique squeeze tool and extrusion channel design was developed. This design enabled the one-step fabrication of ultrafine-grained sheets with a controllable thickness and a bilateral gradient structure through the combined effects of squeeze，friction and cutting. The numerical simulation and experimental methods were combined to analyze the forming processes of bilateral gradient structured pure copper sheets. The mechanism of squeeze-machining machining and the influences of processing parameters on the formations of the bilateral gradient microstructure were explored. The results show that，compared to the original pure copper samples，the maximum hardness of the pure copper sheets prepared using the squeeze-cutting method is increased by approximately threefold. Additionall，the sheets exhibit an excellent strength-ductility synergy： while some ductility is sacrificed， the yield strength nearly is of doubles，and the ultimate tensile strength increases by a factor of four.

Key words： squeeze-machining； controllble thickness； bilateral gradient structure; gradientultra-fine-grained sheet；mechanical property

0 引言

強度-延展性的協同是金屬材料發展和應用中的一大障礙[1]。（剩余15149字）
