CSCR脫硫脫硝物料循環系統改造

打開文本圖片集

CSCRDESULFURIZATIONANDDENITRIFICATION MATERIALSCIRCULATIONSYSTEMUPGRADE

Ji Nan zhuo Jia Ma （Hebei Iron and Steel Group Dahe Ring Handan Branch.Handan O56Oo1， China）

Abstract：ThisarticleintroducesaCSCRdesulfurizationanddenitrificationmaterialcirculationsystemthatisprovided through a multi-loop system transformation， which can extend the storage time of activated carbon without increasing the capacityof theactivated carbon storage tank.Itcan improve the eficiency of activated carbon circulation tank capacity by 28% ，thereby increasing the maintenance time by 64.2% . This provides a strong guarantee for completing maintenance work.Incaseof emergencies，whenitisnecessarytoinjectactivatedcarbonfromtheabsorptiontower or the desorption tower into the activated carbon circulation tank，the modified discharge slope pipe can make the faulthandling more composed.Itachieves on-line maintenance constructionand enhances theflexibilityof theentire activated carbon circulation system.

Key words： CSCR desulfurization and denitrification; circulation system; discharge slope pipe; tank capacity; maintenance time

0前言

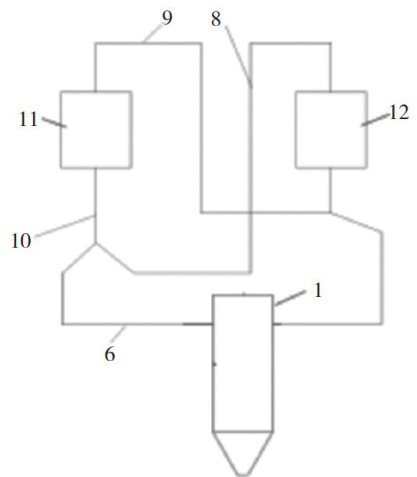

參照?qǐng)D1、圖2，CSCR脫硫脫硝活性炭物料運輸系統內設置有新活性炭倉與活性炭循環倉兩個緩沖倉，主要用于系統內活性炭的存儲；新活性炭倉用于新添加的活性炭，體積為 90m3 ，活性炭循環倉用于吸附塔、解析塔故障或臨時停車檢修時活性炭的緩沖倉，體積為 320m3 。（剩余1973字）
