大型環形薄壁鍛件調質工藝研究

打開文本圖片集

Abstract：Thematerial of thelarge annularthin-walled forging is 3OCrMnSiA steel，the maximum diameter is （20 1630mm ，the height is 230mm ，the wall thickness is about 25mm ， the hardness after quenching and tempering is required to meet 33～38HRC ，and the degree of warpage deformation shall not exceed 3.28mm .Forgings are tested by using special tooling，after 900°C oil-cooled quenching and 500～520°C tempering，the hardness value and deformation degree of multiple forgings are detected，andthe hardness value is controlld in therange of 35～ 38HRC，and the deformation is controlled with in 3.28mm .It effectively solves the problem of insufficient hardness and excessive deformation in the process of quenching and tempering of the forging，and provides an technical support for the company's production and manufacturing of this type of workpiece.

Keywords： large annular thin-walled forgings; heat treatment process; deformation; quenching and tempering

1序言

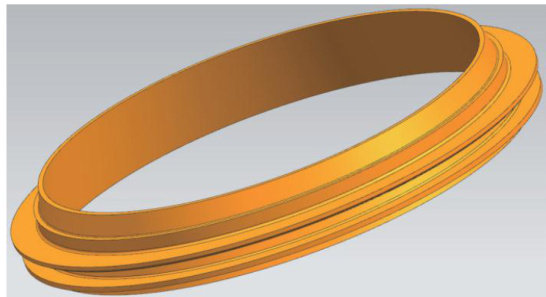

大型鍛件的調質處理往往比小鍛件的熱處理更加困難，某大型環形薄壁鍛件尾環殼體（以下簡稱“工件”）是固體火箭發動機上的核心零件，如圖1所示。（剩余3754字）
