某車型千斤頂固定座處車身鈑金撕裂破壞問題與解決

打開文本圖片集

中圖分類號：U462.82；TP391.99 文獻標志碼：B

Tearing failure of body sheet metal at fixed seat of certain vehicle jack and its solution

WANG Xu，XIE Haosen， ZHOU Wenchao，HAN Chao，WANG Tao，SUN Jiaxing， SHI Limin

（General Research and Development Institute，China FAW Co.，Ltd.，Changchun 130011，China）

Abstract：The tearing damage of the body sheet metal at the fixed seat of certain vehicle jack is analyzed，and it is found that the system vibration leads to fatigue cracking of the sheet metal in the case of insufficient of fixing and limiting of the jack.Multiple jack fixing schemes is designed，and the improvement plan is determined by comparison and screening.The load spectrum of the test site is collected and accelerated，and the random vibration fatigue analysis on the final improvement plan is conducted. The results show that the improved plan meets the requirements. The fectiveness of the improved plan is verified by bench testing.

Key Words ： jack ； body sheet metal； tearing failure；load spectrum； random vibration fatigue ； bench test

0引言

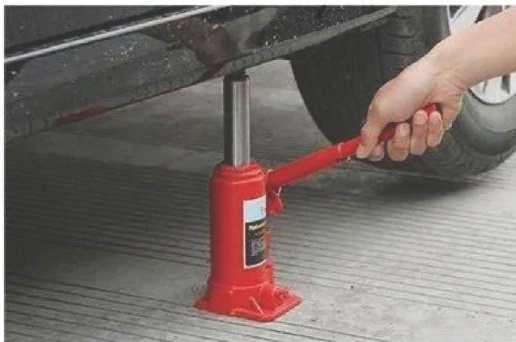

千斤頂是一種輕小起重設備，以剛性頂舉件為工作裝置，通過頂部托座在行程內頂升重物，可在車輛修理時起支撐作用。（剩余5216字）
